ProtectONE® R F400 120 : 2 Vitesses Caisson de désenfumage

ProtectONE® R F400 120 : 2 Vitesses

Caisson de désenfumage

ProtectONE® R F400-120 2 Vitesses est un caisson de désenfumage à destination des locaux tertiaires et industriels.
ProtectONE® R F400 120 : 2 Vitesses ProtectONE® R F400 120 : 2 Vitesses
Télécharger le fichier CAD Library
ProtectONE® R F400 120 : 2 Vitesses
ProtectONE® R 2V est un caisson de désenfumage F400-120 à deux vitesses, conçu pour les locaux tertiaires et industriels. Il est équipé d'une roue à réaction à entrainement direct. Son dispositif de réglage exclusif ProtectONE® Adapt permet de régler le débit d'extraction simplement en toutes circonstances.
ProtectONE® R F400 120 : 2 Vitesses

Les + produits

  • réglage facilité de débit avec le dispositif exclusif ProtectONE® Adapt,
  • entièrement démontable de série (sauf modèle isolé),

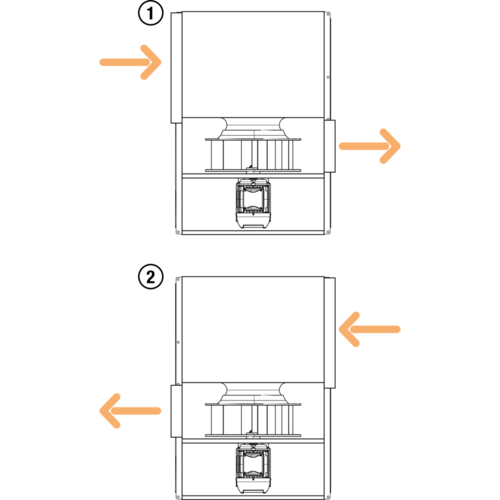

  • raccordement au refoulement modulaire (sauf modèle isolé): gauche, droite, vertical,
  • roue à réaction: faible variation de débit meme si les pertes de charges varient,
  • isolation thermique pour implantation en local technique certifiée selon EN12101-3.

Sur ordre du CMSI le caisson de désenfumage ProtectONE® R va être actionné en mode désenfumage par le coffret de relayage pour permettre l'extraction des fumées. Le coffret va ensuite le passer en mode "défaut" puis en mode "attente".

  • conforme au marquage CE 1812-CPR-1181,
  • agréé EFECTIS F400-120 selon EN12101-3,
  • moto-ventilateur type roue libre conforme à l’ErP 2018,
  • débit de 1000 à 21 000 m³/h,
  • moteur électrique de classe F, IP55,
  • motorisation triphasé 2 vitesses,
  • dispositif de réglage de débit intégré au caisson : ProtectONE® Adapt (système breveté), exclusivité ALDES (système breveté),
  • roue centrifuge à réaction accouplée directement au moteur,
  • isolation thermique pour implantation en local technique,
  • 2 modèles : modèle refoulement en ligne et modèle refoulement à 90°.
  • domaines d'application :
    • extraction des fumées et des gaz chauds en cas d’incendie dans tous bâtiments tertiaires,
    • extraction d’air vicié dans les locaux tertiaires et industriels,
    • extraction de polluants dans les cuisines professionnelles.
  • 10 tailles de caisson pour un débit de 1000 à 21 000 m³/h :
    • ProtectONE® R2.0 à ProtectONE® R5.0 : Taille 1,
    • ProtectONE® R6.5 à ProtectONE® R9.0 : Taille 2,
    • ProtectONE® R10.0 à ProtectONE® R21.0 : Taille 3,
    • ProtectONE® R2.0 à ProtectONE® R5.0 : Taille 1 EL,
    • ProtectONE® R6.5 à ProtectONE® R9.0 : Taille 2 EL,
    • ProtectONE® R10.0 à ProtectONE® R21.0 : Taille 3 EL.
  • options disponibles :
    • solution « Tout en Un » : comprend le coffret de relayage, l’interrupteur et le pressostat,
    • pressostat variable 100 - 1 000 Pa (1 pressostat par vitesse de désenfumage),
    • choix de la position de refoulement : accès gauche/droite sur modèle EL,
    • isolation thermique agréée pour implantation en local technique (refoulement horizontal ou vertical).
  • accessoires :
    • platine carré/circulaire pour adaptation à l’aspiration,
    • visière pare-pluie anti volatile au refoulement,
    • manchette souple rectangulaire et circulaire,
    • plots anti vibratiles,
    • clapet anti-retour.
  • installation en intérieur ou en extérieur,
  • pour mise en œuvre intérieure : prévoir l’option isolation thermo-acoustique (EN 12101-3),
  • pour mise en œuvre extérieure : prévoir une visière pare-pluie + grille,
  • interrupteur de proximité livré monté câblé avec contacts de position.
Matière de l'isolant Type de moteur Type de roue

AC

Réaction

ProtectONE® R F400 120 : 2 Vitesses ProtectONE® R F400 120 : 2 Vitesses

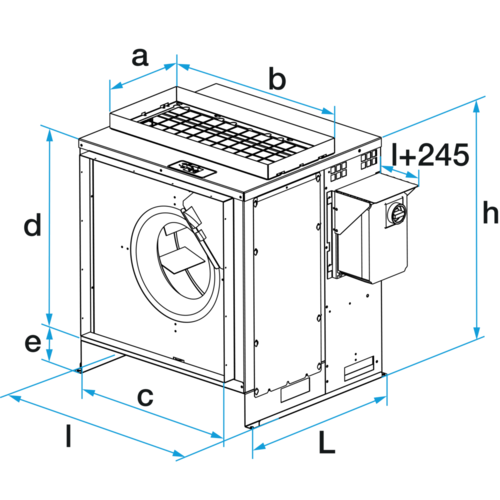

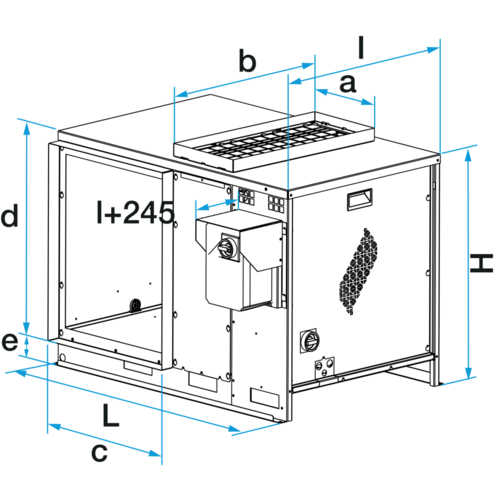

Références A (mm) B (mm) C (mm) D (mm) H (mm) I (mm) L (mm) Bride (mm) Isolation (mm) Poids (kg)
11039281 - ProtectONE® R 4.0 2V

300

655

595

595

775

745

660

I+20

L+50 H+25

69

11039282 - ProtectONE® R 5.0 2P 2V

330

655

595

595

775

745

660

I+20

L+50 H+25

75

11039283 - ProtectONE® R 6.5 2V

335

745

695

695

875

835

770

I+20

L+50 H+25

102

11039284 - ProtectONE® R 8.0 2V

335

745

695

695

875

835

770

I+20

L+50 H+25

109

11039286 - ProtectONE® R 10.0 2V

510

905

795

795

1020

965

910

I+20

L+50 H+25

170

11039287 - ProtectONE® R 12.0 2V

510

905

795

795

1020

965

910

I+20

L+50 H+25

176

11039288 - ProtectONE® R 15.0 2V

510

905

795

795

1020

965

910

I+20

L+50 H+25

231

11039289 - ProtectONE® R 21.0 2V

510

905

795

795

1020

965

910

I+20

L+50 H+25

226

11039291 - ProtectONE® R 4.0 EL 2V

300

595

595

595

775

745

1070

I+20

L+50 H+25

83

11039292 - ProtectONE® R 5.0 2P EL 2V

300

595

595

595

775

745

1070

I+20

L+50 H+25

89

11039293 - ProtectONE® R 6.5 EL 2V

335

745

695

695

875

835

1195

I+20

L+50 H+25

119

11039294 - ProtectONE® R 8.0 EL 2V

335

745

695

695

875

835

1195

I+20

L+50 H+25

126

11039295 - ProtectONE® R9.0 2P EL 2V

335

745

695

695

875

835

1195

I+20

L+50 H+25

138

11039296 - ProtectONE® R 10.0 EL 2V

510

795

795

795

1020

965

1430

I+20

L+50 H+25

193

11039297 - ProtectONE® R 12.0 EL 2V

510

795

795

795

1020

965

1430

I+20

L+50 H+25

199

11039298 - ProtectONE® R 15.0 EL 2V

510

795

795

795

1020

965

1430

I+20

L+50 H+25

231

11039299 - ProtectONE® R 21.0 EL 2V

510

795

795

795

1020

965

1430

I+20

L+50 H+25

249

11039285 - ProtectONE® R 9.0 2P 2V

335

745

695

695

875

835

770

I+20

L+50 H+25

122

Références Tension (V) Intensité nominale (A) Id/In Nombre de pôles Puissance (kW)
11039281 - ProtectONE® R 4.0 2V

400

1,75/1,05

5/3,7

4/6

0,55/0,2

11039282 - ProtectONE® R 5.0 2P 2V

400

3,58/1,19

07/05/2022 00:00

2/4

1,5/0,37

11039283 - ProtectONE® R 6.5 2V

400

3,65/1,62

5,5/4,5

4/6

1,5/0,37

11039284 - ProtectONE® R 8.0 2V

400

4,42/2,33

6,5/5

4/6

1,7/0,6

11039286 - ProtectONE® R 10.0 2V

400

4,91/2,48

6/5,5

4/6

2,2/0,7

11039287 - ProtectONE® R 12.0 2V

400

6,85/3,86

7,6/6,2

4/6

3/1

11039288 - ProtectONE® R 15.0 2V

400

10,2/5,38

7,5/7

4/6

4,5/1,5

11039289 - ProtectONE® R 21.0 2V

400

13,7/6,96

7,8/7,4

4/6

6/2,2

11039291 - ProtectONE® R 4.0 EL 2V

400

1,75/1,05

5/3,7

4/6

0,55/0,2

11039292 - ProtectONE® R 5.0 2P EL 2V

400

3,58/1,19

07/05/2022 00:00

02-avr

1,5/0,37

11039293 - ProtectONE® R 6.5 EL 2V

400

3,65/1,62

5,5/4,5

04-juin

1,5/0,37

11039294 - ProtectONE® R 8.0 EL 2V

400

4,42/2,33

6,5/5

04-juin

1,7/0,6

11039295 - ProtectONE® R9.0 2P EL 2V

400

8,59/2,79

7,8/5

02-avr

4,4/1,1

11039296 - ProtectONE® R 10.0 EL 2V

400

4,91/2,48

6/5,5

04-juin

2,2/0,7

11039297 - ProtectONE® R 12.0 EL 2V

400

6,85/3,86

7,6/6,2

04-juin

03-janv

11039298 - ProtectONE® R 15.0 EL 2V

400

10,2/5,38

7,5/7

04-juin

4,5/1,5

11039299 - ProtectONE® R 21.0 EL 2V

400

13,7/6,96

7,8/7,4

04-juin

6/2,2

11039285 - ProtectONE® R 9.0 2P 2V

400

8,59/2,79

7,8/5

2/4

4,4/1,1

  • Numéro PV CE  :  1812-CPR-1181

Références produits et accessoires

  • ProtectONE® R 4.0 2V
    ProtectONE® R 4.0 2V
    11039281
    à partir de 2977,00 (H.T.)
  • ProtectONE® R 5.0 2P 2V
    ProtectONE® R 5.0 2P 2V
    11039282
    à partir de 3091,00 (H.T.)
  • ProtectONE® R 6.5 2V
    ProtectONE® R 6.5 2V
    11039283
    à partir de 3331,00 (H.T.)
  • ProtectONE® R 8.0 2V
    ProtectONE® R 8.0 2V
    11039284
    à partir de 4413,00 (H.T.)
  • ProtectONE® R 10.0 2V
    ProtectONE® R 10.0 2V
    11039286
    à partir de 5239,00 (H.T.)
  • ProtectONE® R 12.0 2V
    ProtectONE® R 12.0 2V
    11039287
    à partir de 5795,00 (H.T.)
  • ProtectONE® R 15.0 2V
    ProtectONE® R 15.0 2V
    11039288
    à partir de 6565,00 (H.T.)
  • ProtectONE® R 21.0 2V
    ProtectONE® R 21.0 2V
    11039289
    à partir de 7001,00 (H.T.)
  • ProtectONE® R 4.0 EL 2V
    ProtectONE® R 4.0 EL 2V
    11039291
    à partir de 3041,00 (H.T.)
  • ProtectONE® R 5.0 2P EL 2V
    ProtectONE® R 5.0 2P EL 2V
    11039292
    à partir de 3202,00 (H.T.)
  • ProtectONE® R 6.5 EL 2V
    ProtectONE® R 6.5 EL 2V
    11039293
    à partir de 3449,00 (H.T.)
  • ProtectONE® R 8.0 EL 2V
    ProtectONE® R 8.0 EL 2V
    11039294
    à partir de 4485,00 (H.T.)
  • ProtectONE® R9.0 2P EL 2V
    ProtectONE® R9.0 2P EL 2V
    11039295
    à partir de 4629,00 (H.T.)
  • ProtectONE® R 10.0 EL 2V
    ProtectONE® R 10.0 EL 2V
    11039296
    à partir de 5313,00 (H.T.)
  • ProtectONE® R 12.0 EL 2V
    ProtectONE® R 12.0 EL 2V
    11039297
    à partir de 5912,00 (H.T.)
  • ProtectONE® R 15.0 EL 2V
    ProtectONE® R 15.0 EL 2V
    11039298
    à partir de 6648,00 (H.T.)
  • ProtectONE® R 21.0 EL 2V
    ProtectONE® R 21.0 EL 2V
    11039299
    à partir de 7290,00 (H.T.)
  • ProtectONE® R 9.0 2P 2V
    ProtectONE® R 9.0 2P 2V
    11039285
    à partir de 4557,00 (H.T.)
